Signal Distribution, Simplified
Netvio delivers professional-grade HDBaseT matrix switching, AV over IP distribution, and signal extension for commercial installations. With the Netvio 360 configuration platform and Netvio GO end-user control, every system is designed for straightforward deployment and intuitive operation without dedicated control hardware.
Netvio was founded to offer a creditable brand alternative with a different perspective on AV signal distribution. Their product range covers HDBaseT matrix switching from 4x4 to 8x8 configurations, JPEG2000-based AV over IP for scalable deployments, and a comprehensive selection of HDBaseT extenders for point-to-point signal transport at distances up to 70 metres at 4K or 150 metres at 1080p.
Every Netvio matrix switch supports 4K/60 HDR with features that simplify integration: ARC audio return for soundbar and amplifier connectivity, mirror HDMI outputs for local monitoring, 4K-to-1080p downscaling for mixed-resolution environments, and compatibility with third-party control systems including Control4, Crestron, Elan, and RTI.
The JP4 AVoIP platform extends distribution across standard 1Gb network infrastructure with JPEG2000 encoding, supporting video wall configurations, KVM extension, and enterprise-grade security. Netvio's own plug-and-play network switches require zero configuration, removing one of the biggest barriers to AVoIP adoption.
4x4, 8x6+2, and 8x8 matrix switches supporting 4K/60 HDR with ARC, scaling, mirror outputs, and third-party control system integration
JPEG2000 encoders, decoders, and centralised controllers on standard 1Gb networks with zero-config switches and video wall support
Free configuration and control software providing guided workflows for integrators and intuitive room control for end users

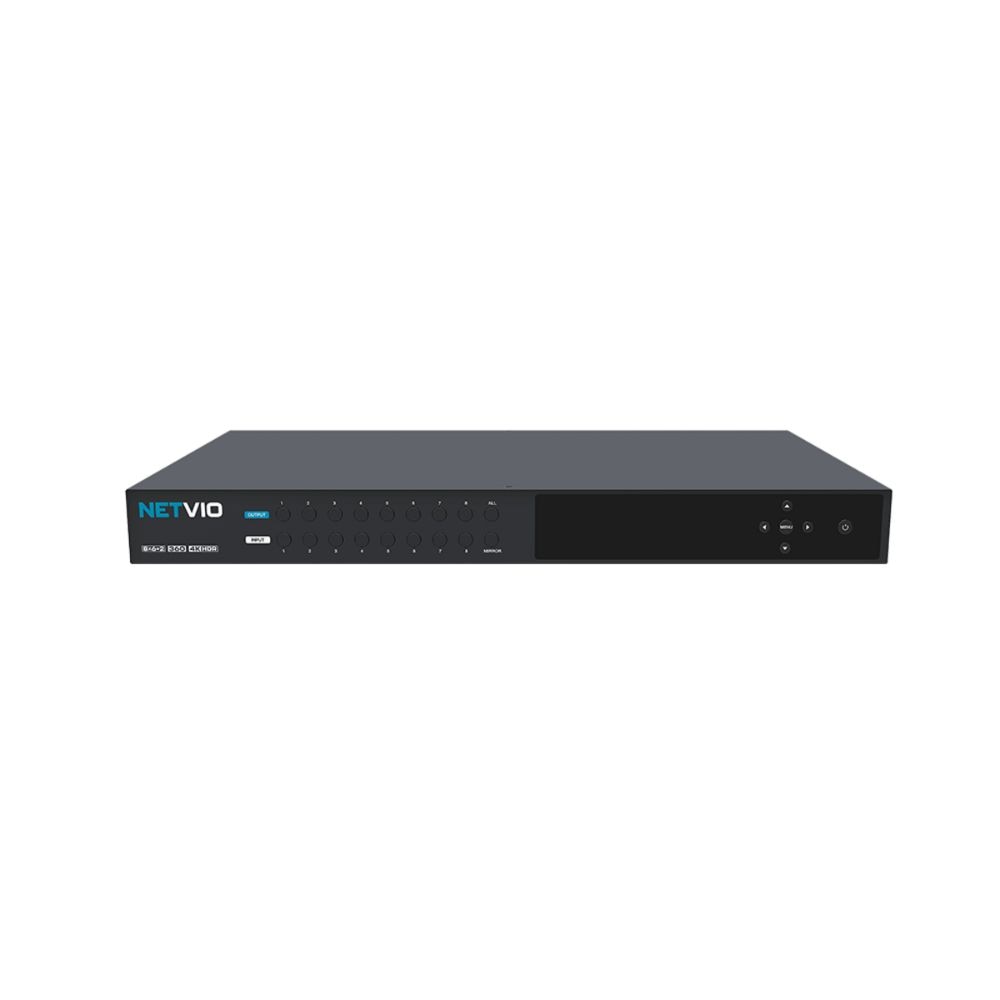

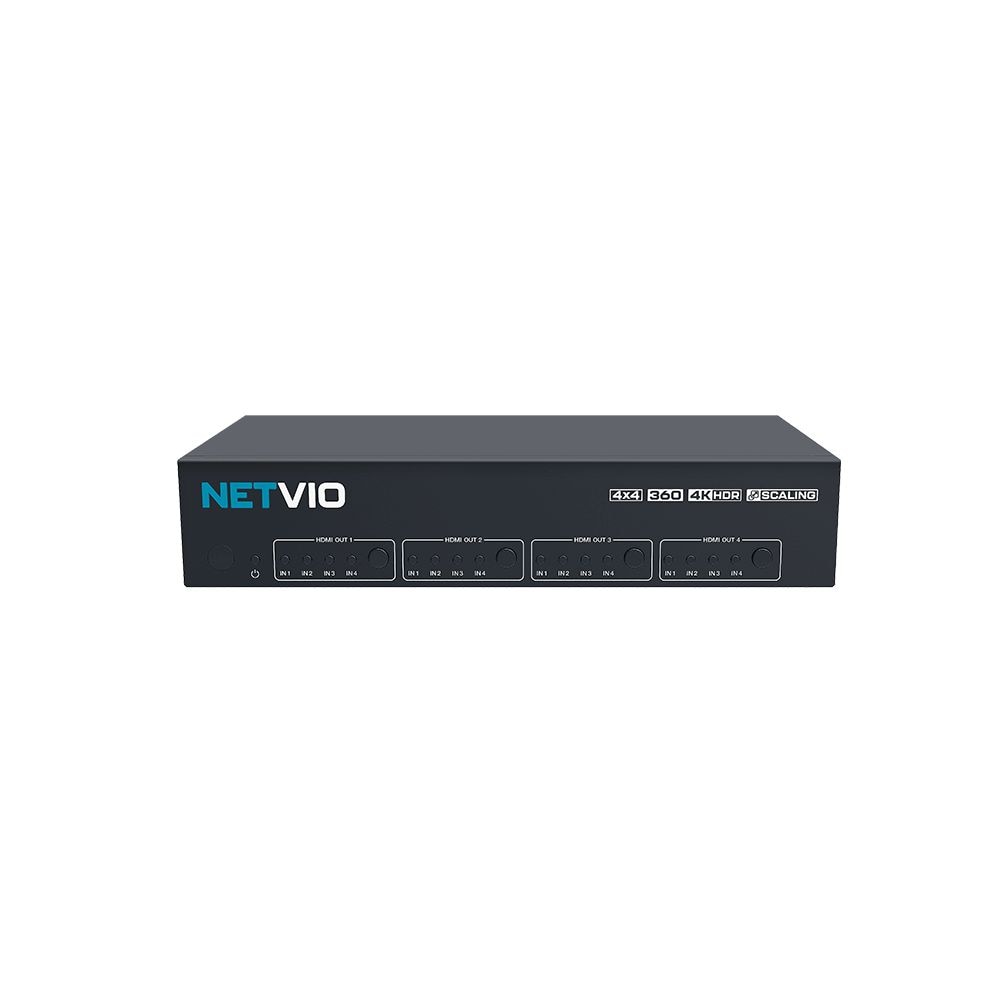

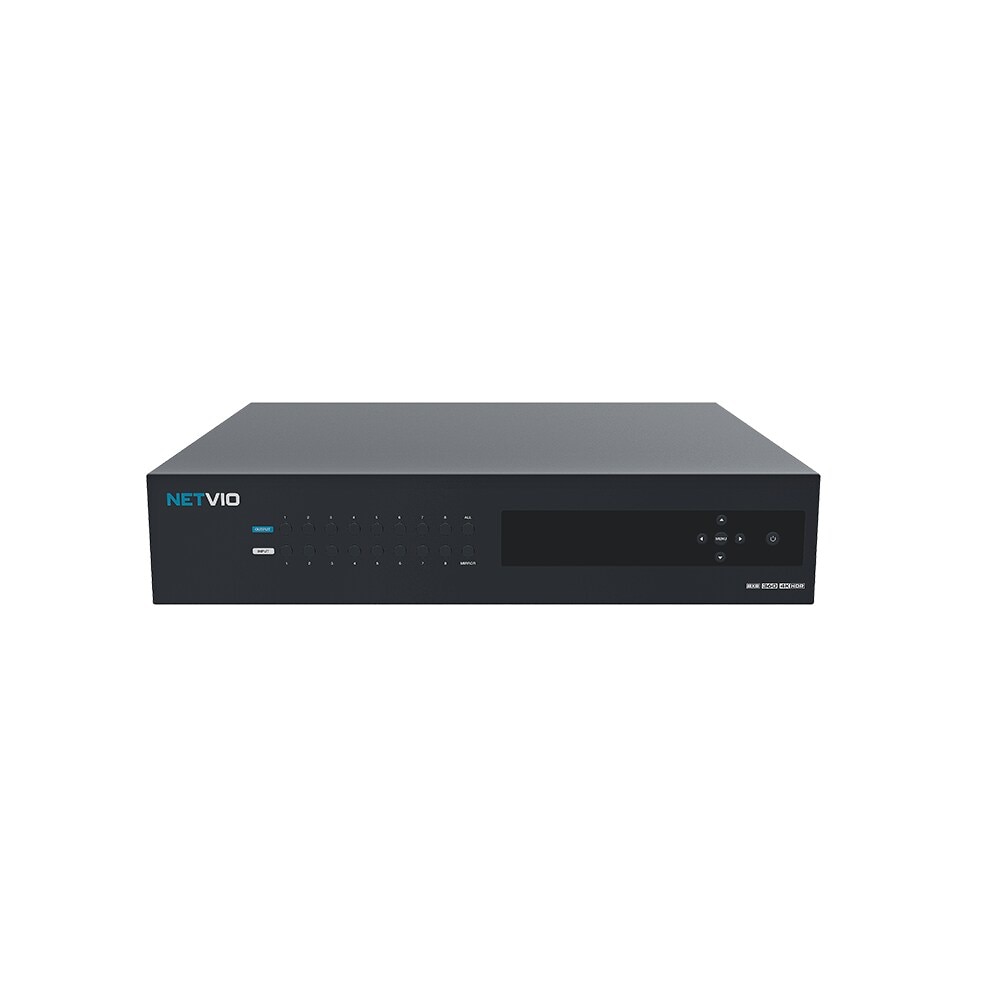

Netvio's HDBaseT matrix range covers 4x4, 8x6+2, and 8x8 configurations, all supporting 4K/60 HDR and 1080p. The 8x8 model delivers both 40m and 70m HDBaseT outputs with ARC audio return, mirror HDMI outputs for local monitoring, and 4K-to-1080p downscaling. The compact 4x4 HDMI matrix provides a cost-effective solution for smaller meeting rooms. Every matrix includes RS-232, IR, and IP control with drivers for Control4, Crestron, Elan, and RTI, plus the Netvio 360 and GO software platforms.
.jpg)

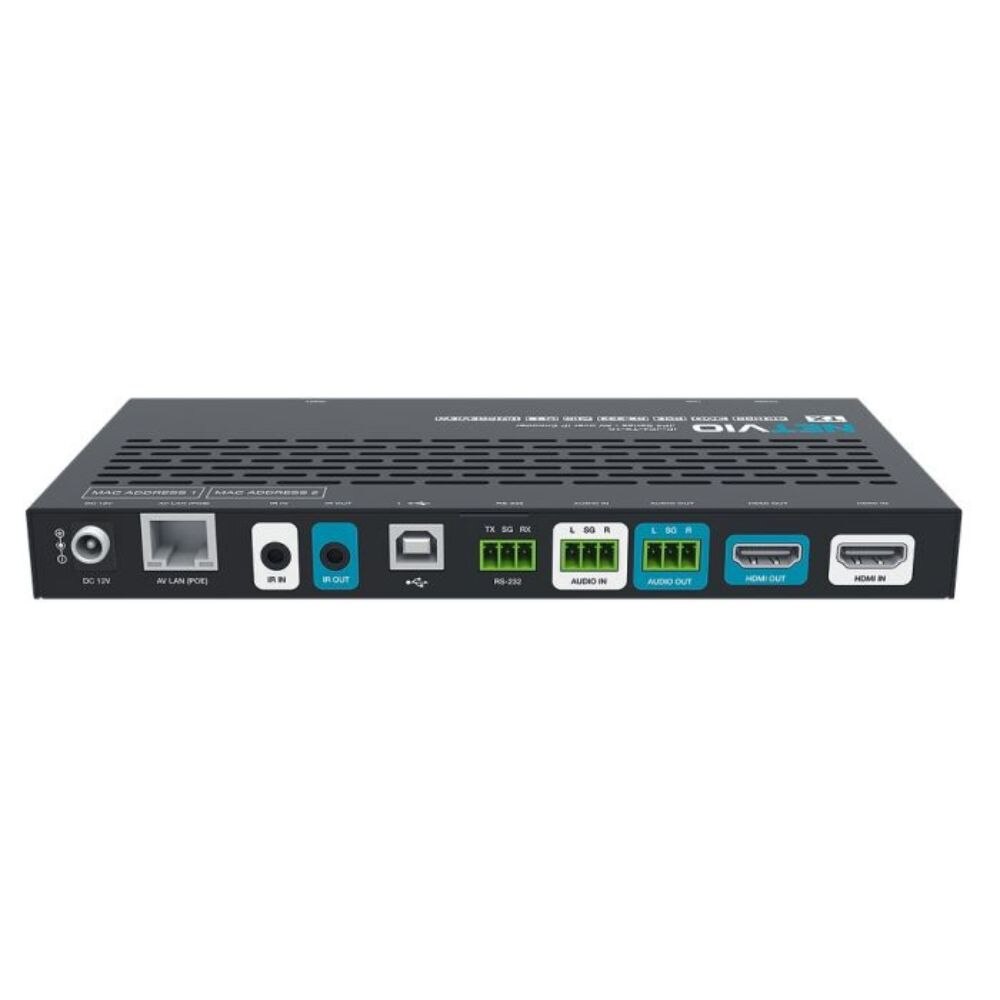

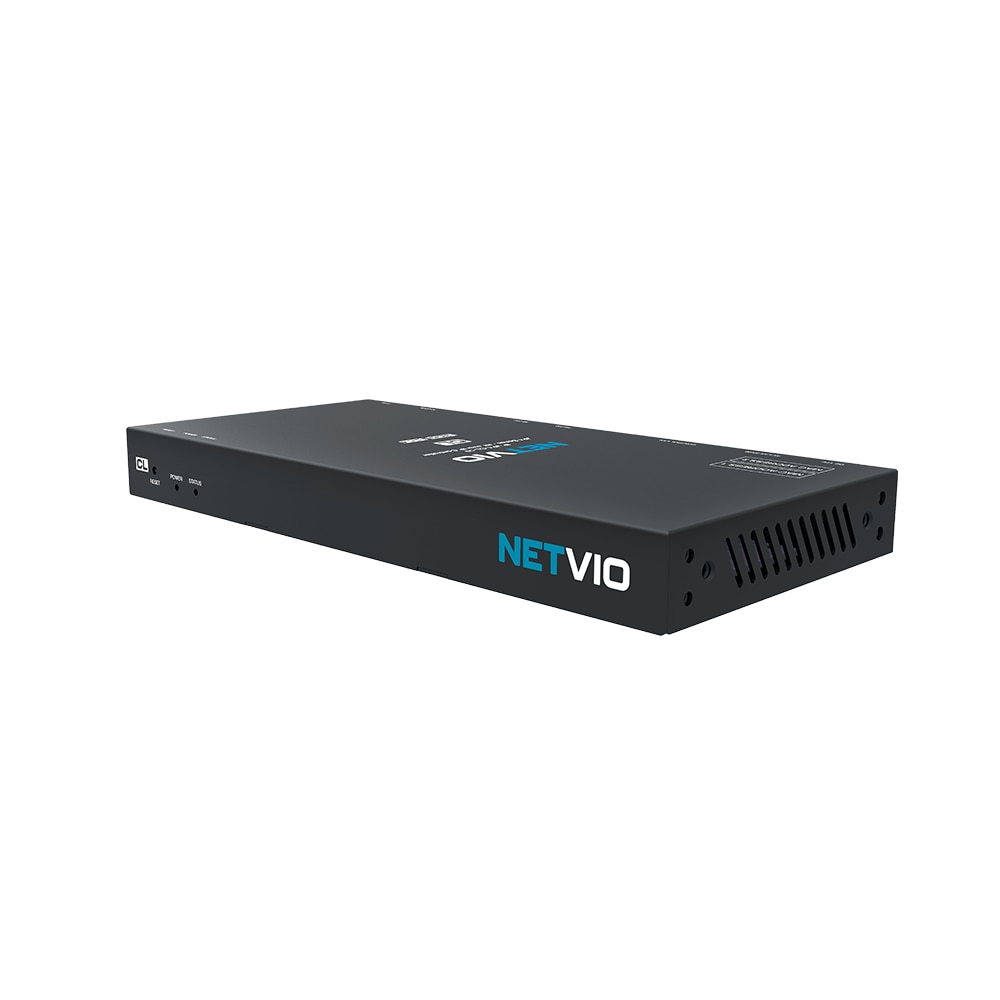

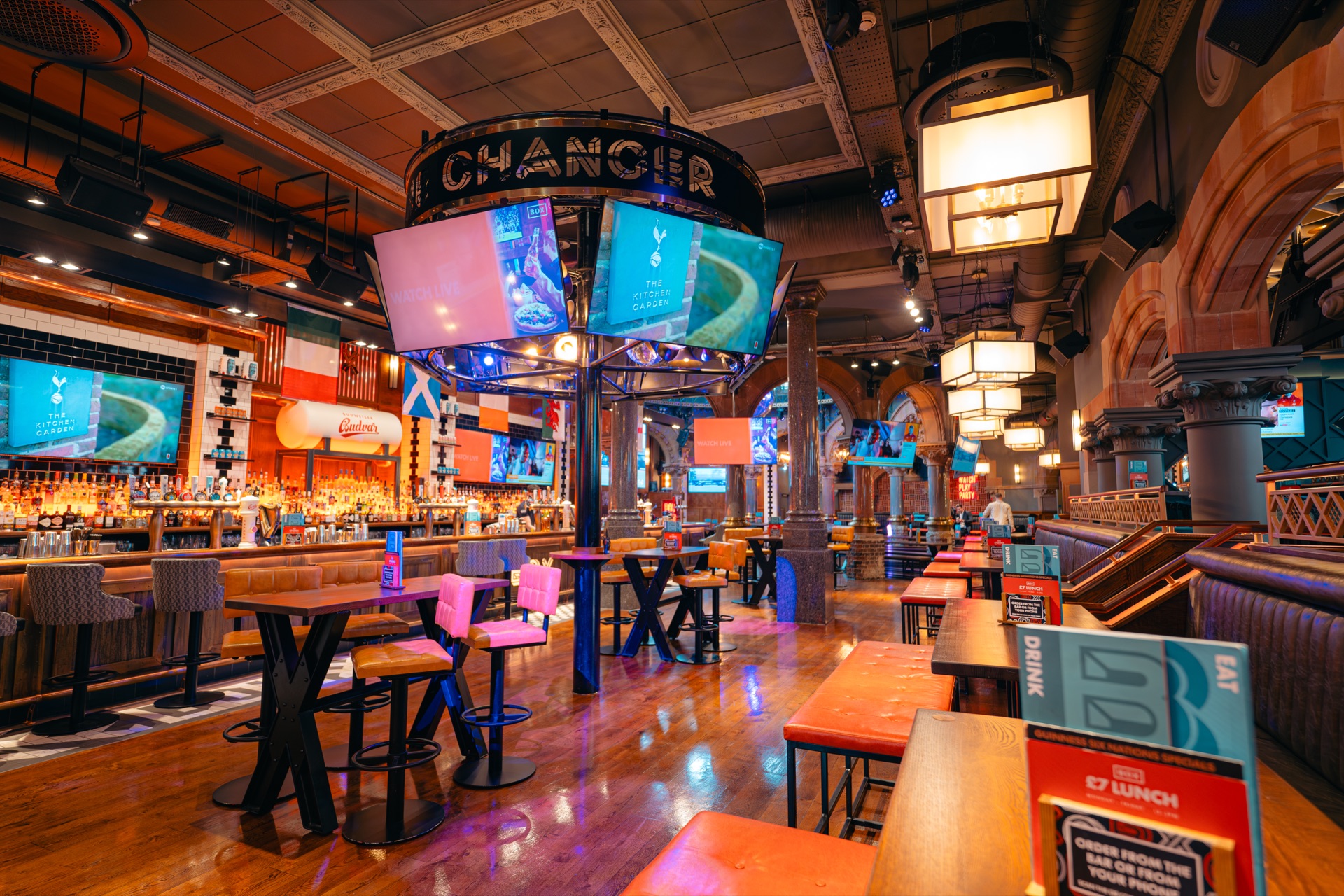

The JP4 AVoIP platform distributes 4K HDR video across standard 1Gb network infrastructure using JPEG2000 encoding. The system comprises encoders, decoders, and a centralised dual-network controller, supporting video wall configurations, KVM extension for remote workstation access, and enterprise-grade security. Netvio's purpose-built 24-port and 48-port PoE network switches require zero configuration out of the box, eliminating the need for specialist network engineering on AVoIP deployments.

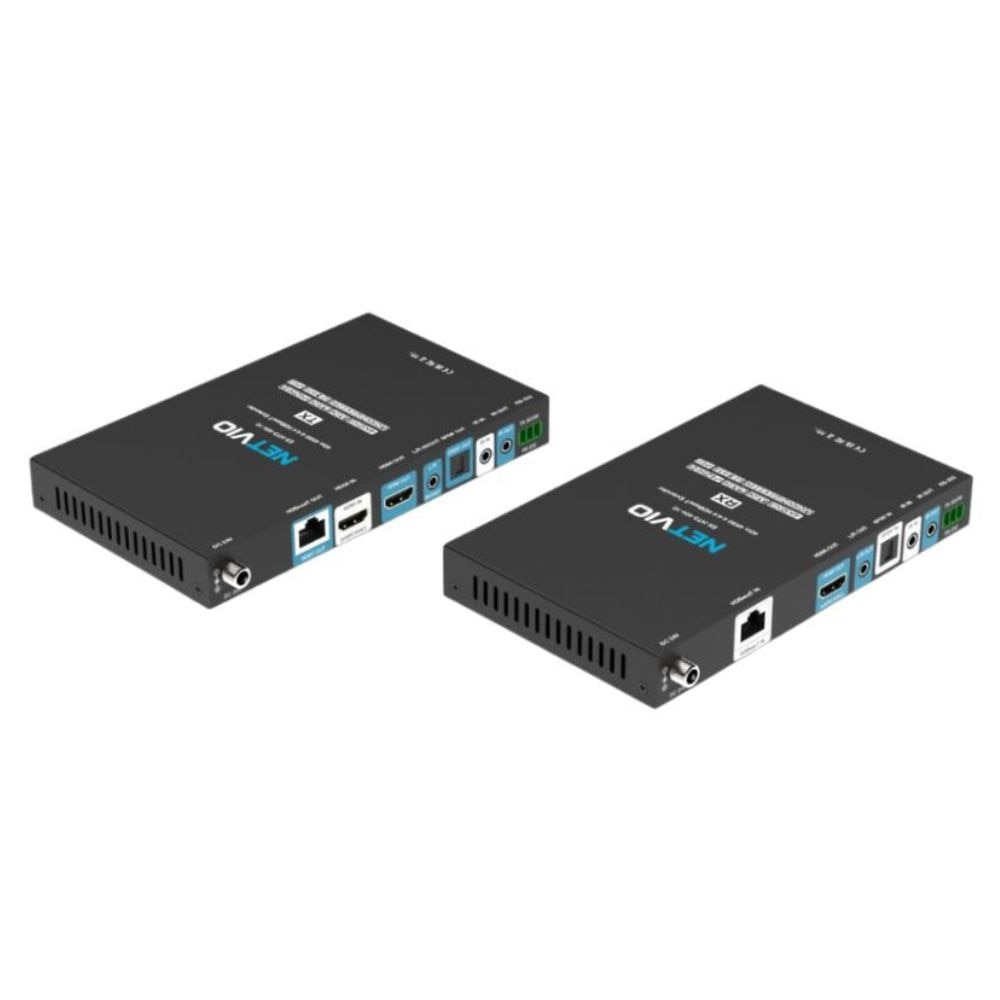

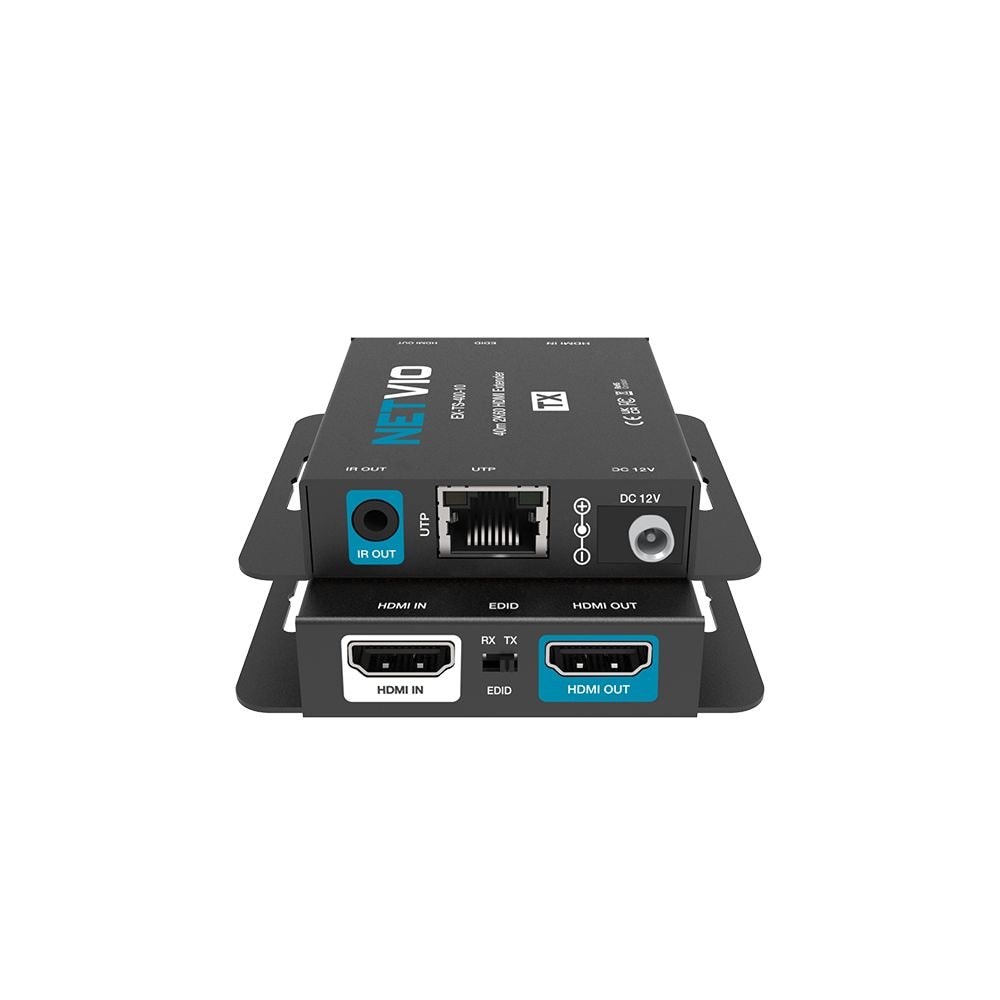

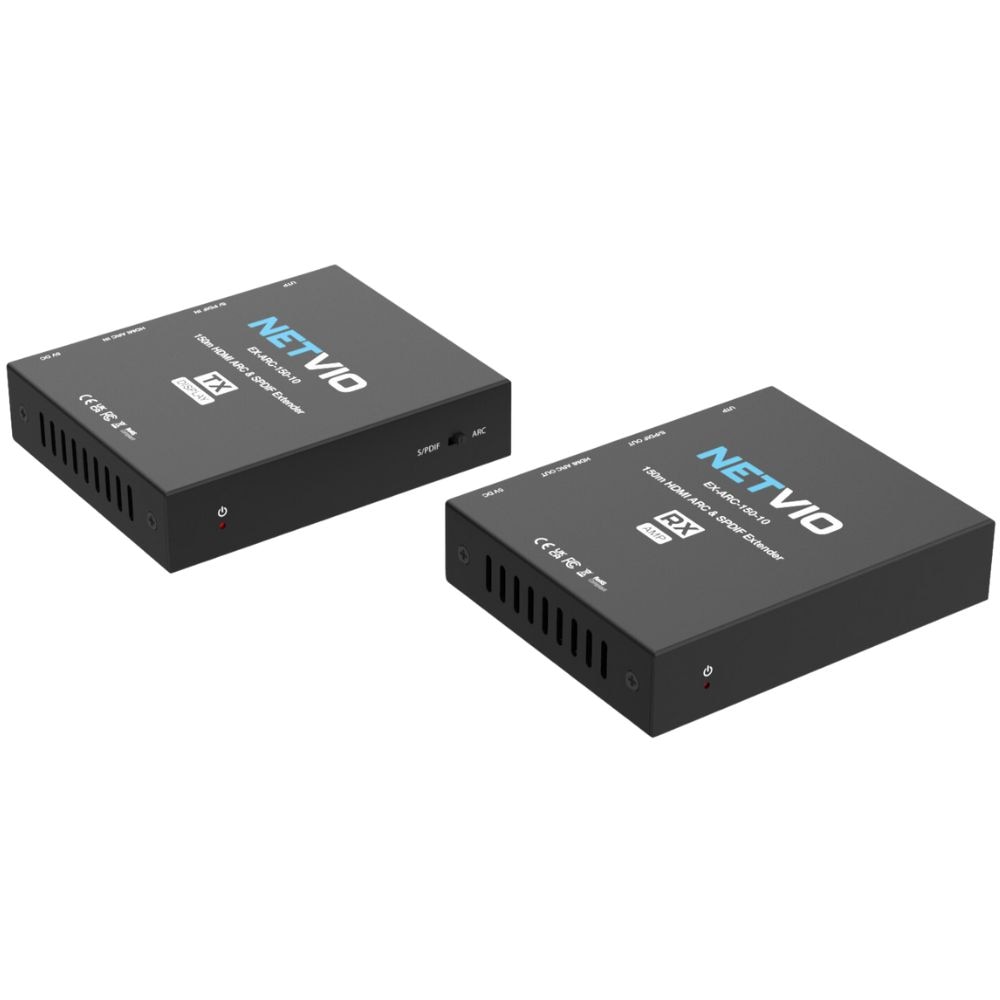

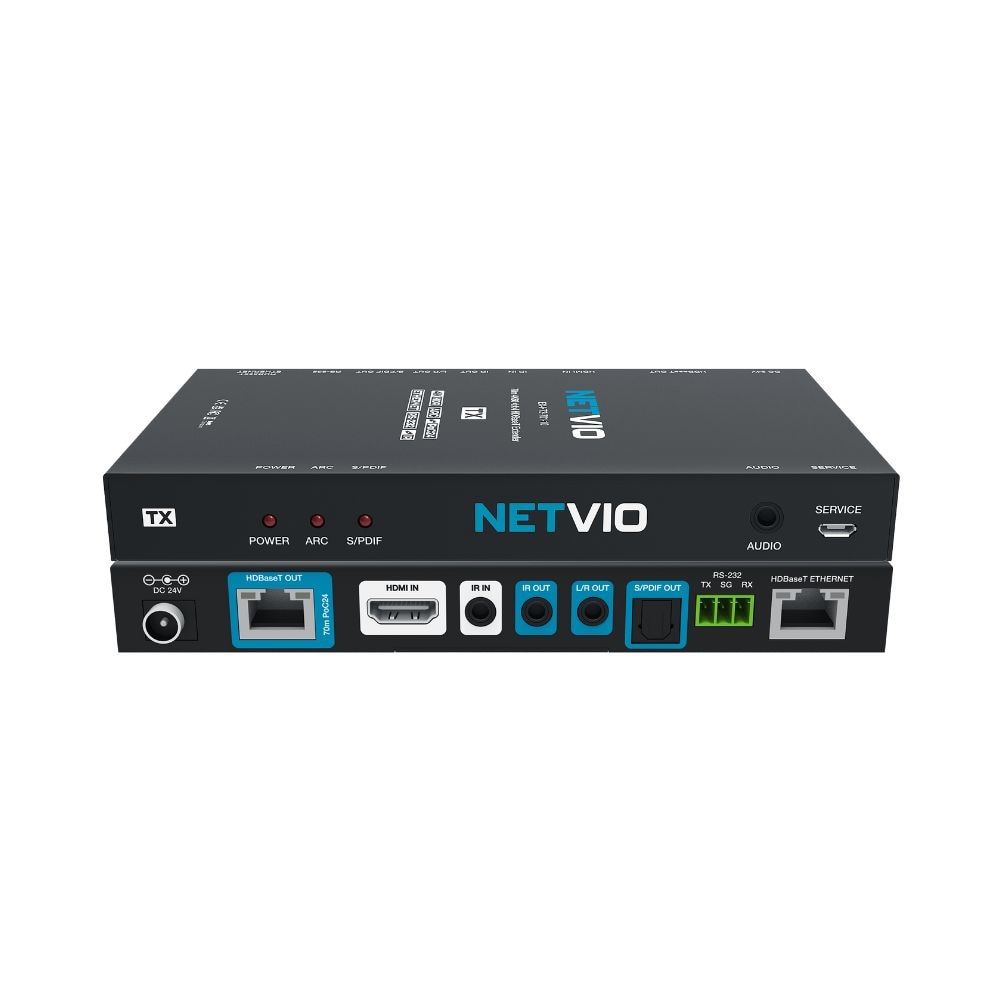

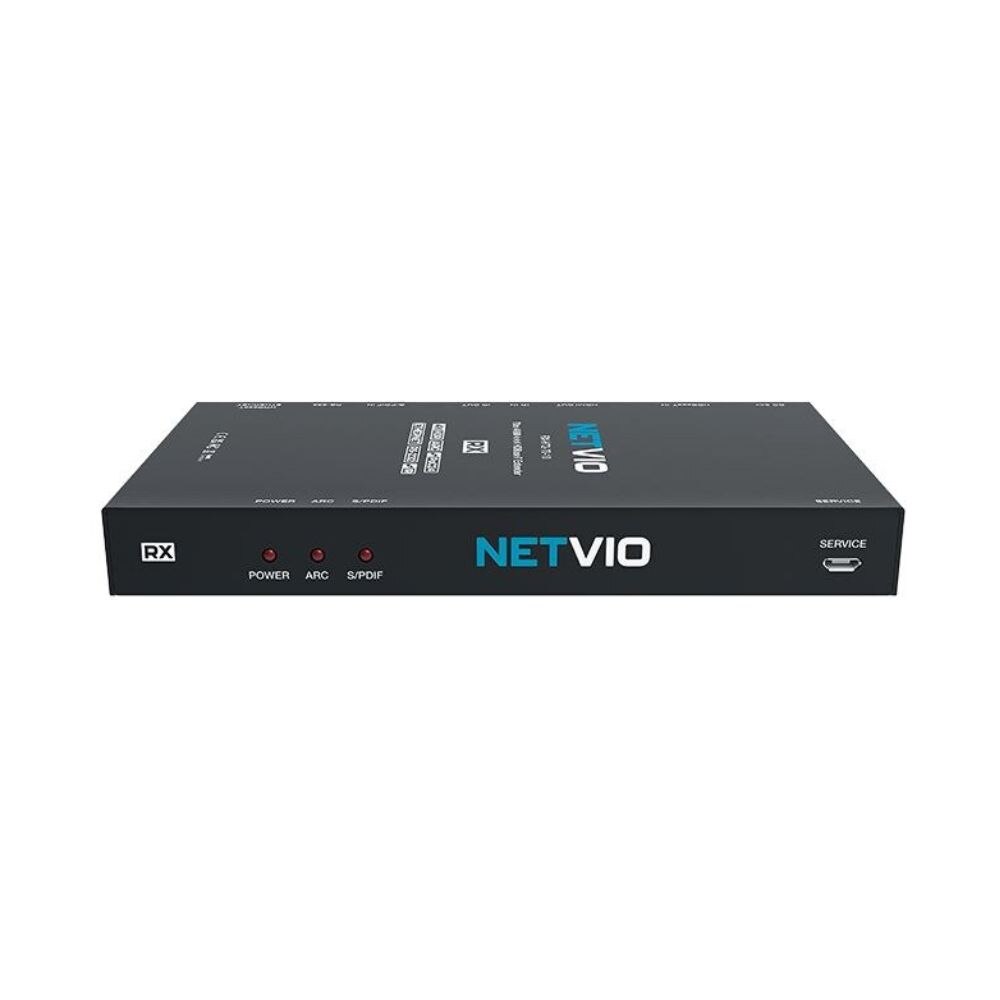

Netvio offers a comprehensive range of HDBaseT extenders for point-to-point signal transport. Options span from 40m 4K HDBaseT 3.0 with uncompressed 18Gb and eARC to 70m 4K/60 HDR sets with Ethernet, ARC, two-way IR, and RS-232. Power over Cable technology eliminates the need for local power at the receiver end, and the ARC audio extender sends audio return channel content up to 150 metres over a single CAT6 cable for soundbar or amplifier connectivity in large spaces.

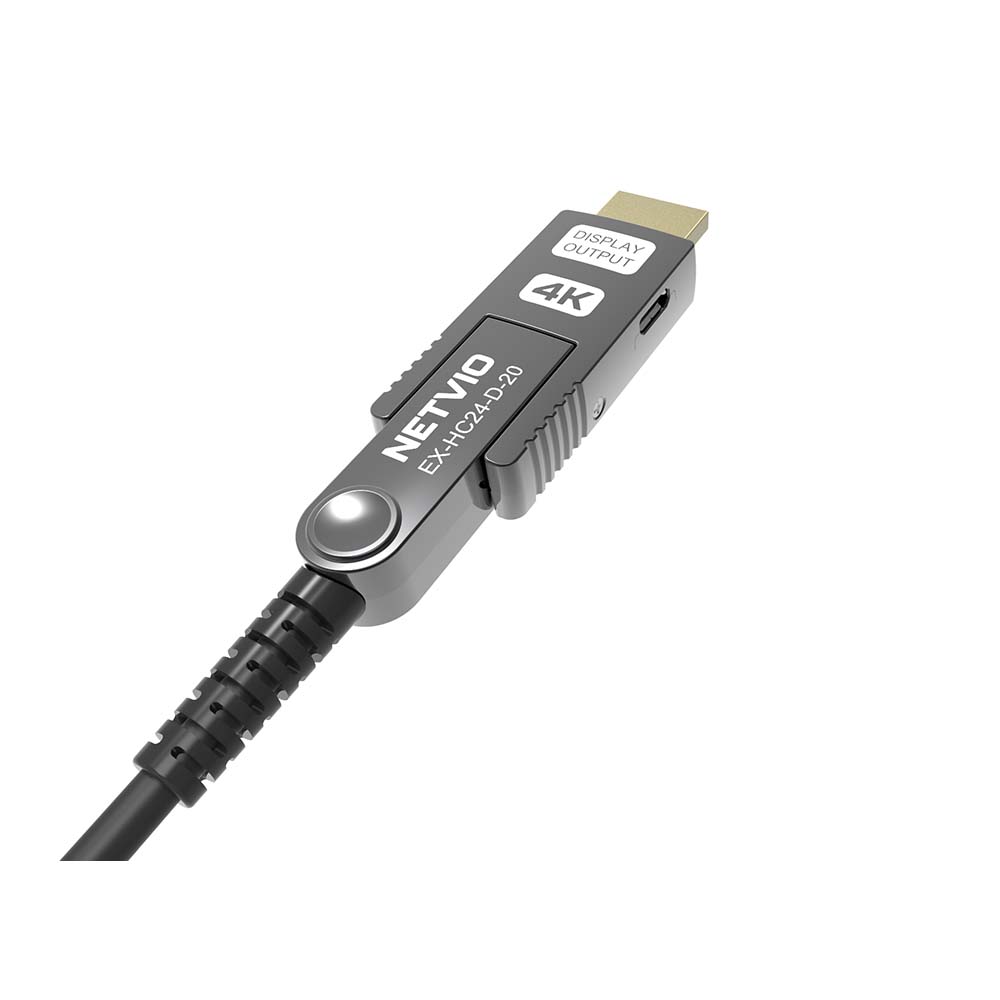

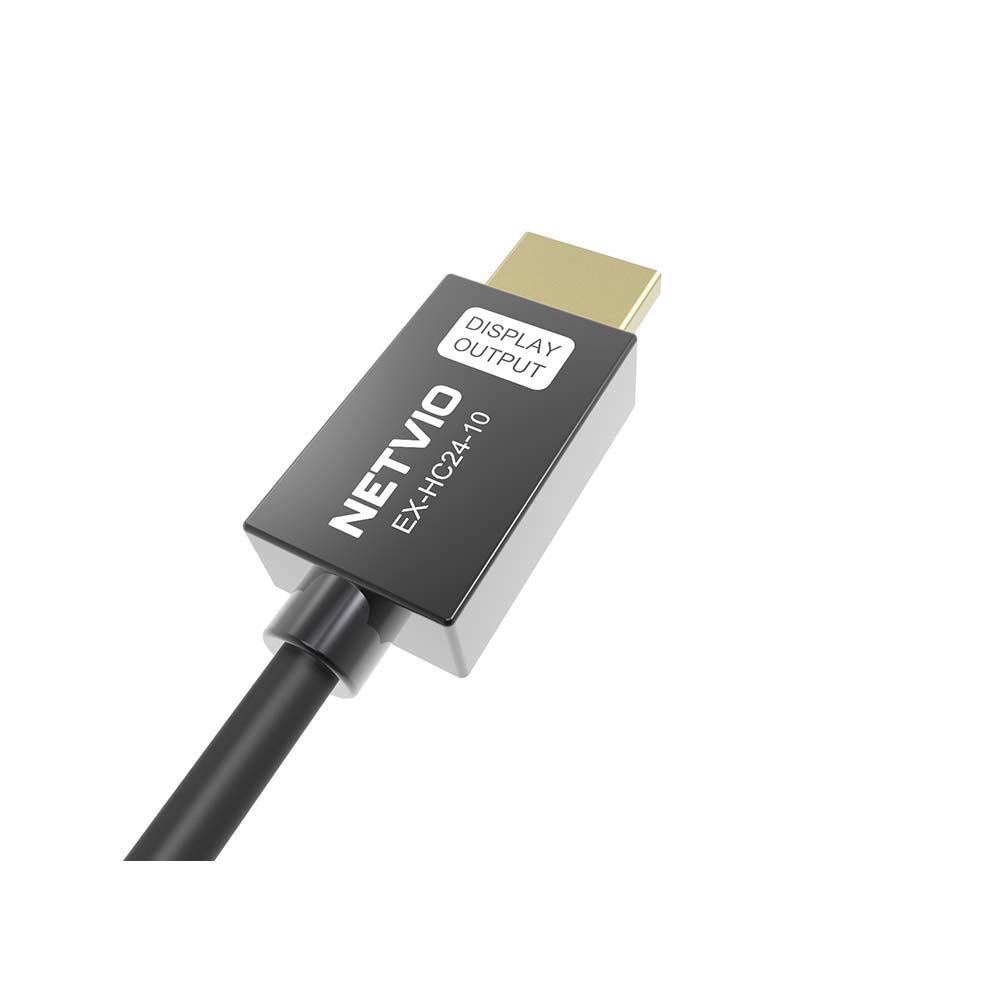

Netvio's active optical HDMI cables deliver uncompressed 18Gb 4K/60 HDR with ARC and CEC support in LSZH (low smoke zero halogen) jacket material, available in fixed-head and detachable-head variants at lengths from 10m to 30m. HDMI splitters in 1x2 and 1x4 configurations include 4K-to-1080p scaling, audio de-embedding, and EDID management. The 6U rack mount provides a tidy installation framework for JP4 AVoIP components.
Free configuration software for PC and Mac providing a guided workflow to discover, configure, optimise, and control HDBaseT and AVoIP systems from a single interface.
End-user control app that manages signal routing, sources, displays, and audio devices via IR, RS-232, CEC, and IP without requiring dedicated control hardware.

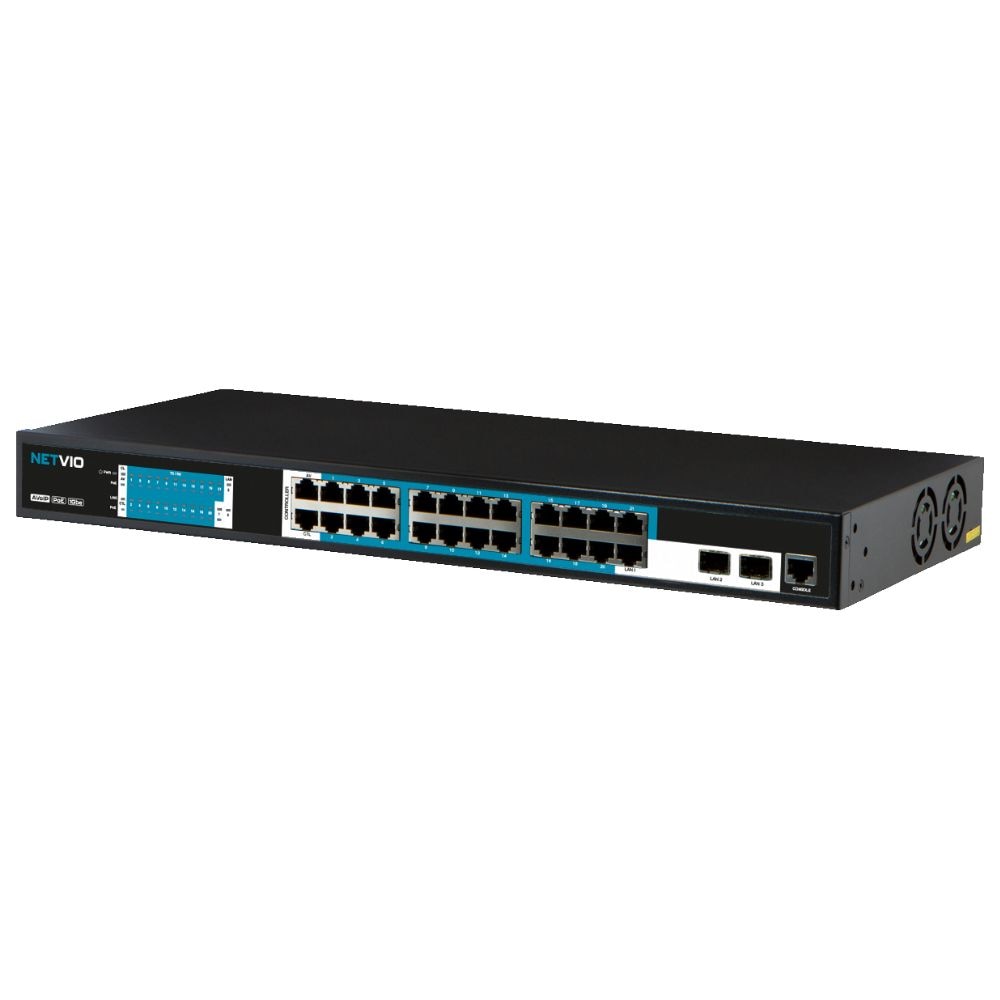

Purpose-built PoE network switches that work out of the box with no VLAN, IGMP, or multicast configuration, removing the biggest barrier to AVoIP adoption.
Full driver support for Control4, Crestron, Elan, and RTI control systems, plus RS-232, IR, and IP interfaces for integration with any automation platform.
View the complete Netvio range, check stock levels, and order online.
Browse on Habitech
From matrix switch selection and AVoIP system design to HDBaseT extender specification, our team can help you choose the right Netvio solution for any signal distribution requirement. We provide system design support, network guidance, and dedicated technical assistance.
